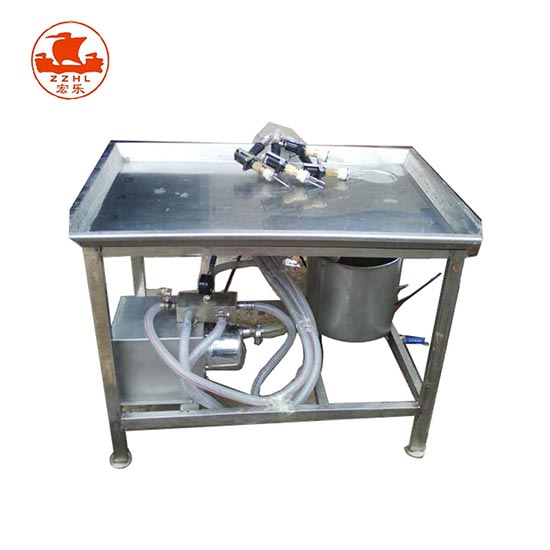

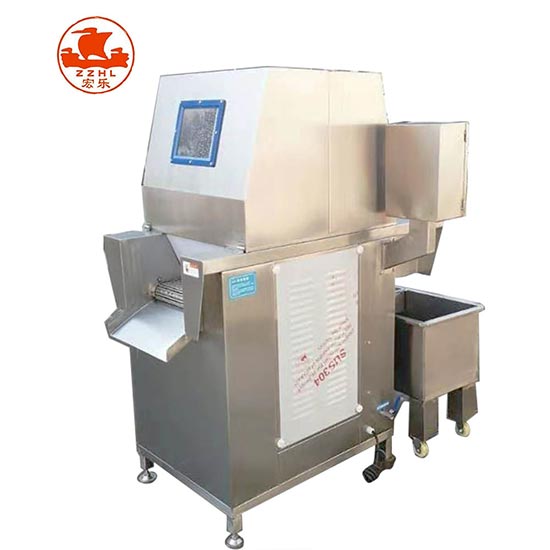

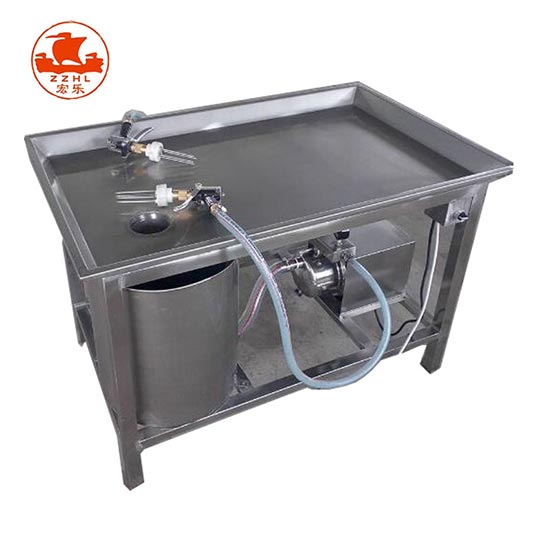

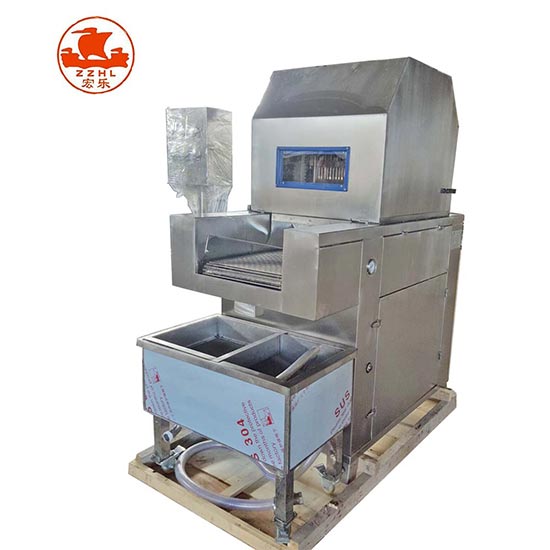

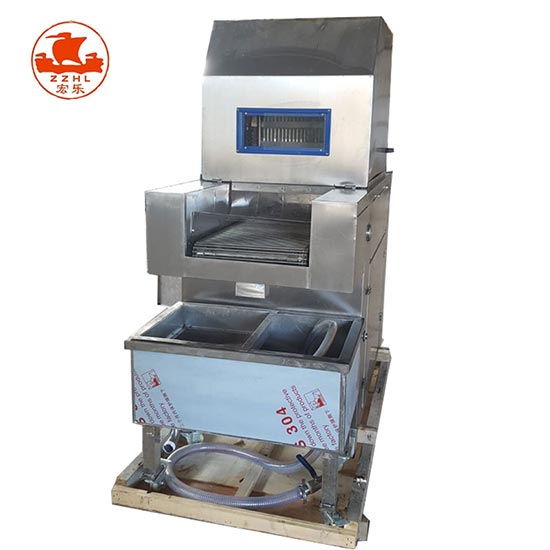

Injection machine :
Injection machine ---vacuum tumbler----pounding machine----clipper---steak cut machine---vacuum packer
Function ：
Can be uniformly injected with saline and the pickle agent into the materials prepared meat, which greatly improves the taste of meat and yield, and to ensure that products product phase. Then through the vacuum tumbler make the material was fully cured, infiltration, can loose muscle tissue structure, in favor of myosin dissolution while injecting the solution configuration after make meat tender, soft, thereby improving the meat produced rate and improve meat tenderness and taste.
Feature：
According to different industry requirements by adjusting the stepping speed, stepping distance, press the meat board space and an injection pressure of the pickling liquid quantitative, uniform, continuous injection of the product in order to achieve the best injection effect of the product.
High quality stainless steel SUS304 production, made of stainless steel pumps, rigorous design, reasonable structure, convenient and safe operation, easy to clean, one of the devices is indispensable meat processing enterprises. In addition to this equipment for meat processing, but also successfully applied by replacing the needle fish, sea cucumbers, poultry and other products injection processing.
Saline injection machine adopts frequency converter, stepping away from the chain and stepping speed and synchronous speed adjustable needle injection.
Saline injection machine equipped with the automatic needle protection device, the needle hit a hard object can lift attendant from destruction.
| Model | HLYZ-48 | HLZYZ-88 |
| capacity | 200-300kg/h | 500-700kg/h |
| Power | 4.1kw | 5.1kw |
| Injection rate | ＞20% | 40-80% |
| Needle diameter | 4mm | 4mm |
| needle | 48pcs | 88pcs |
| Pressure | 0.45-0.9Mpa | 0.45-0.9Mpa |
| speed | 15-20/min | 15-50/min |
| Dimension | 1.4*0.8*1.7m | 1.5*1*1.7m |
| weight | 200kg | 300kg |
-
This Fish killing machine is a collection to scale, open fish maw, gutted and fish cleaning function, can be processed silver carp, bream, grass carp, black carp, carp, salmon, mandarin fish, tilapia, perch, fish Palestinian wave all kinds of fish.
Fish Scale And Gutting Machine
-
This machine is made of all stainless steel materials, wear-resistant and durable, meets the standard, is simple to make, easy to clean, safe and reliable, accurate operation of opening and opening, cleans the internal organs, does not break the fish gallbladder, automatically sprays water at the same time, rinses the fish belly.
Fish Fillet Machine
-
This machine is specially used to remove the skin of various types of fish ,so that the fish can be processed into products soonly. We specially made the pressing roller to fix the material peeling. The peeling rate is high and the material is not wasted. The peeling thickness can be adjusted. It is a good helper for removing fish skin.
Fish Skinning Machine
-
Meat mincer is an indispensable equipment in food processing. Meat mincer adopts the principle of rotating screw to push the materials in the feed box to the pre-cut hole plate, then, the material is cut up by the shearing action of the Rotary Cutter Blade and the hole edge on the hole plate cutter, and the material...
Meat Grinder Grinding Machine
