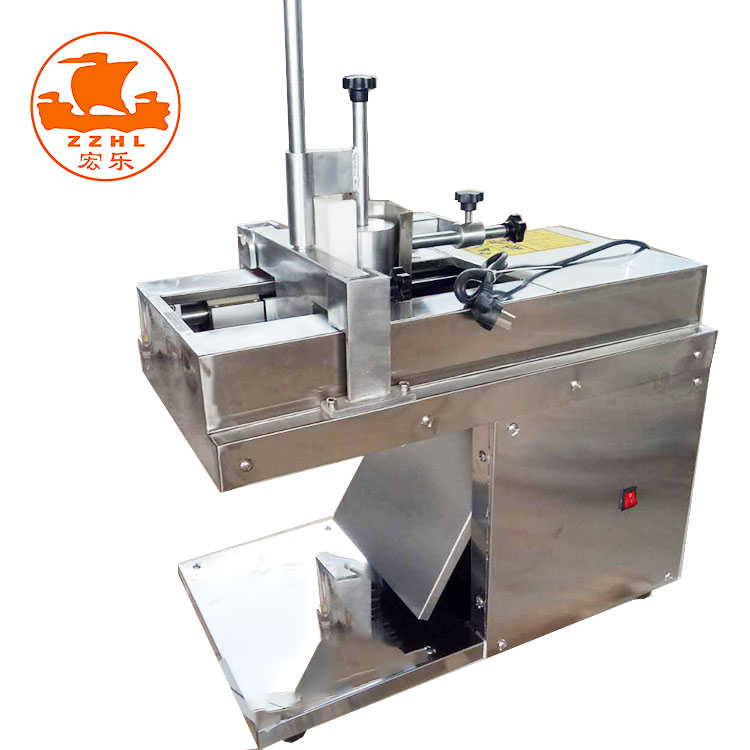

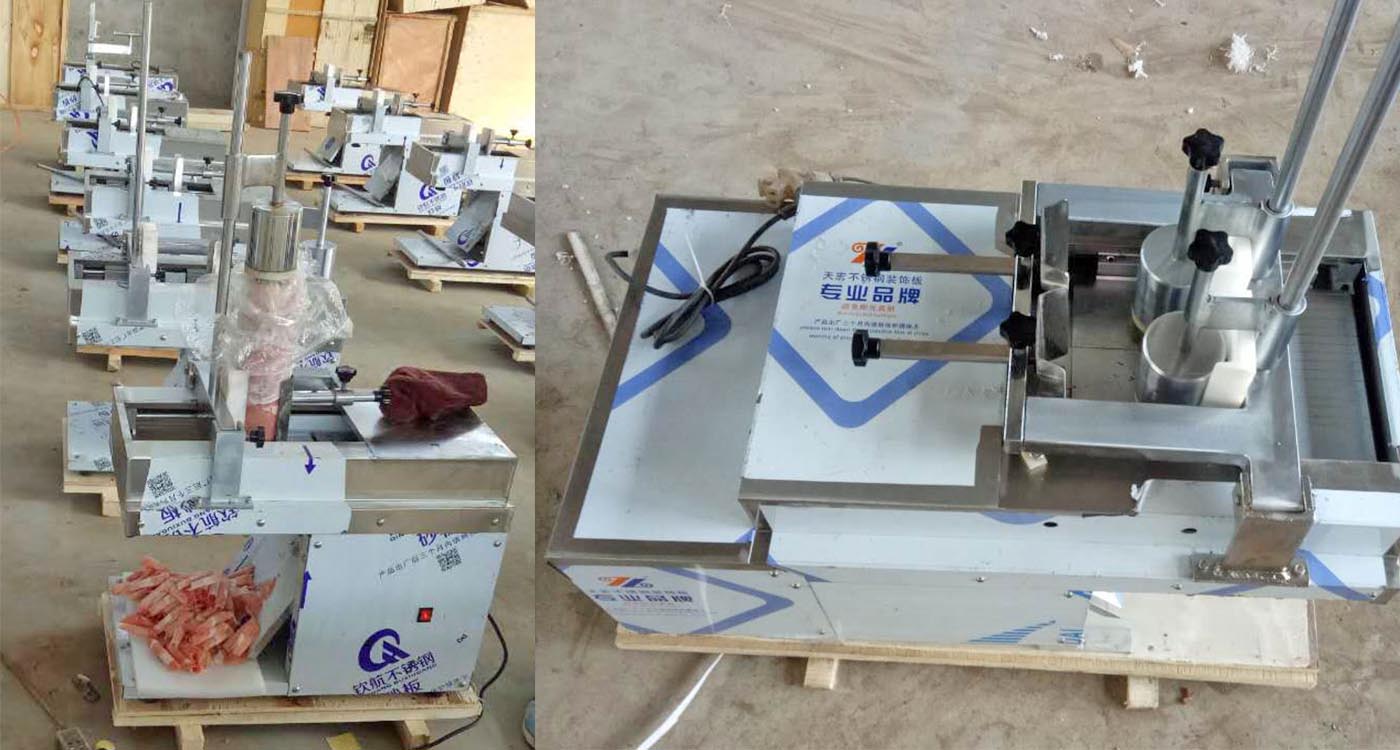

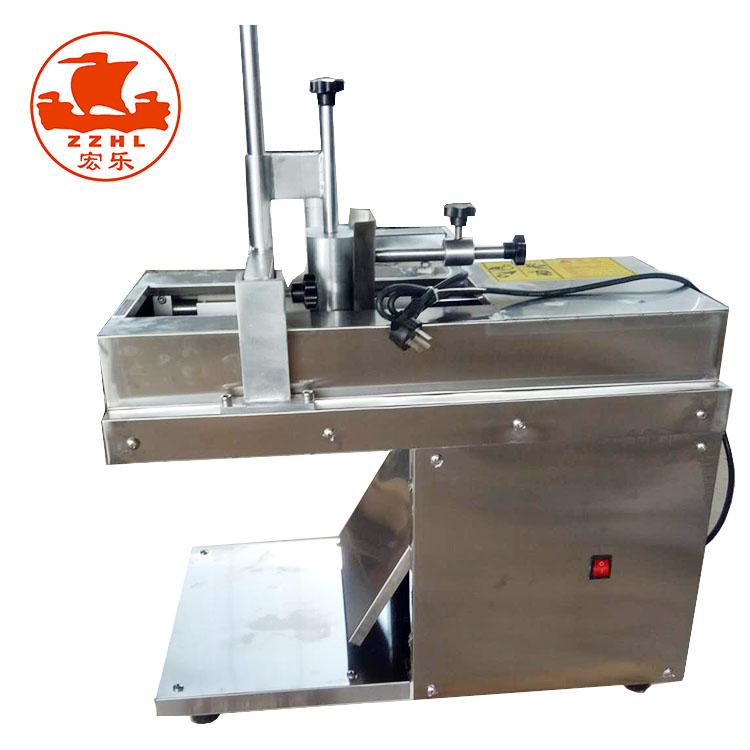

CNC slicer divided into 16 volumes, 8 volumes, 4 volumes, 2 volumes. Fully automatic flat cut 2 volumes, flat cut 1 volume, the use of double stacking cut, touch screen operation, PLC control, servo motor drive, double screw level feed, cutting height of 20 cm, fully automatic operation.
Suitable for large and small meat processing enterprises to use. This product is a number of domestic initiative, the use of electric push material, electric pressure material, electric adjustment thickness. Step-by-step push material, meat processing finished cutter automatically stop, push the board automatically back, automatically stop. The cutter is turned on and the conveyor is automatically synchronized. Protection door open, the machine automatically power. High degree of automation, meat slicing, thickness adjustment, meat delivery, automatic shutdown, can be a key to complete, save time and labor.
| Number of cuts | 2 rolls |
| Productivity | 40-60 kg / h |
| Input voltage | 220v |
| rated power | 750w |
| Slice speed | 50-60 / min |
| Slice thickness | 0-5 (customizable) |
| Maximum cutting height | 180mm (customizable) |
| Maximum cutting length | 600mm (customizable) |
| Machine dimensions | 900 * 480 * 600mm |
| Total Weight | 148kg |
| Number of rolls | 1 roll |
| Production efficiency | 25-40kg / hour |
| Input voltage | 380v / 220v |
| Rated power | 550w |
| Slice speed | 50-60 / min |
| Slice thickness | 0-5 (customizable) |
| Maximum cutting height | 200mm (customizable) |
| Maximum cutting length | 600mm (customizable) |
| Machine dimensions | 950 * 350 * 400mm |
| Weight | 80kg |
-

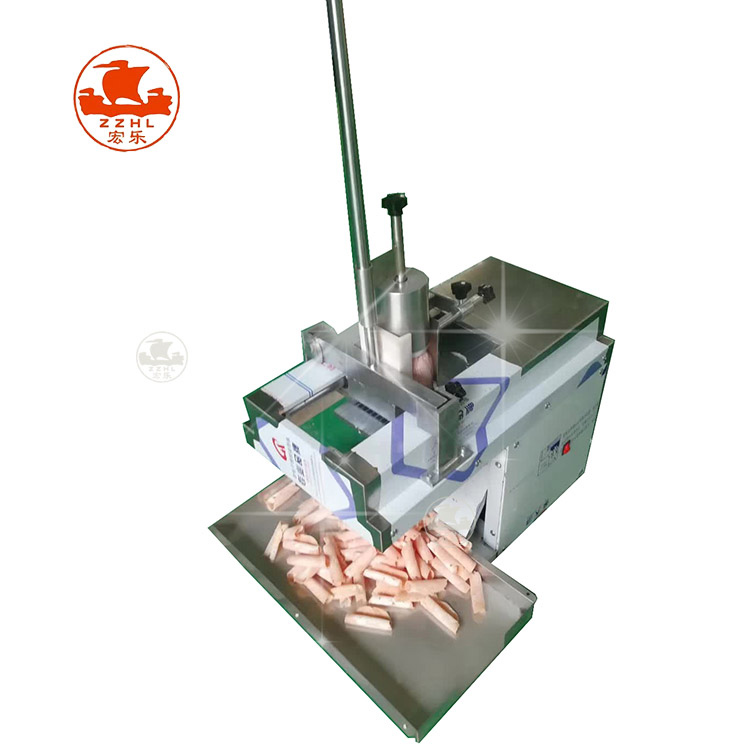

Automatic meat slicer product introduction: multi-slice horizontal cutting of meat, suitable for slicing of fresh raw materials such as pork, beef, mutton, poultry, etc., can realize the cutting of chicken breast butterfly heart.
Fresh Meat Slicing Cutter Machine
-
Automatic Chicken Cutting Machine Beef Meat Cube Cutter Machine Frozen Pork Meat Dicer Poultry Cutting Machine
-
The QD/QZD series dicing machine produced by our company is a reference to the advanced mechanical design concepts at home and abroad, and it has been independently developed by our company's existing product production process requirements. In the same kind of product has the characteristics of high stability, easy operation, large output and low energy consumption.
Meat Dicing Cutting Machine
-
Meat mincer is an indispensable equipment in food processing. Meat mincer adopts the principle of rotating screw to push the materials in the feed box to the pre-cut hole plate, then, the material is cut up by the shearing action of the Rotary Cutter Blade and the hole edge on the hole plate cutter, and the material...
Meat Grinder Grinding Machine
