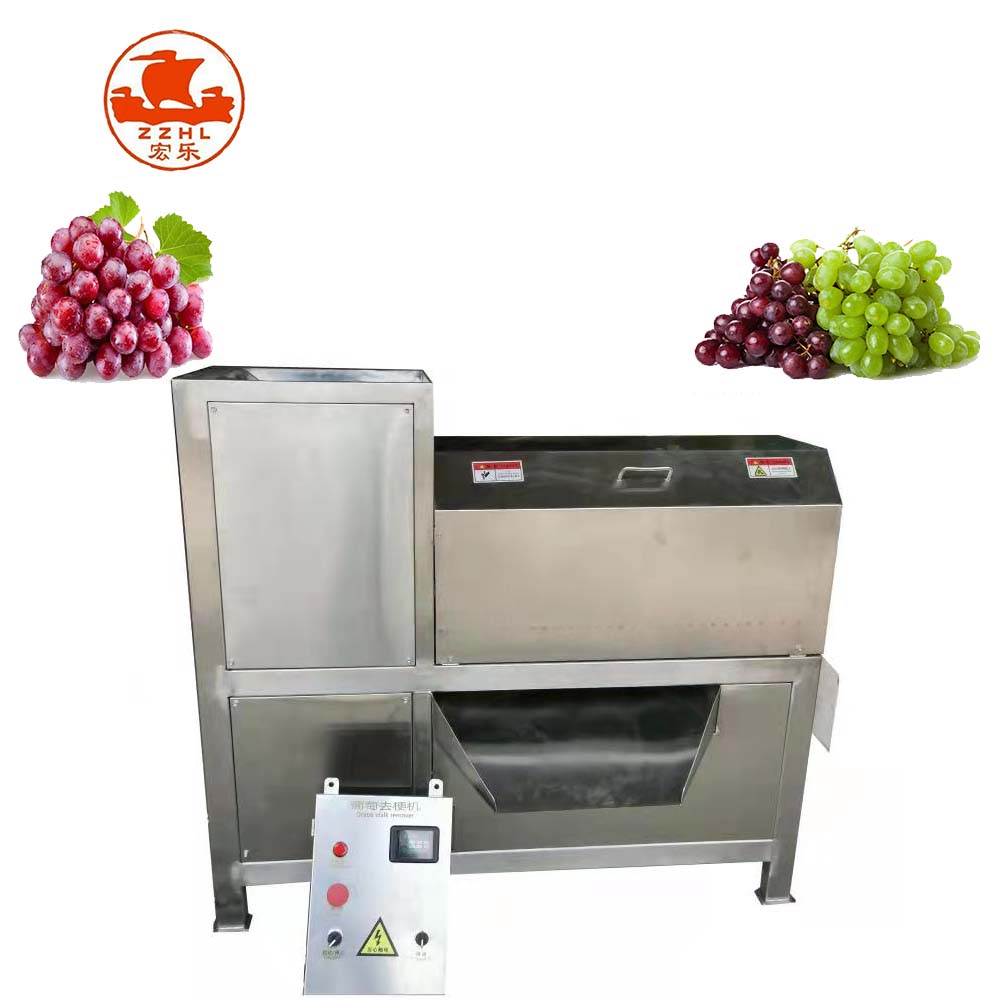

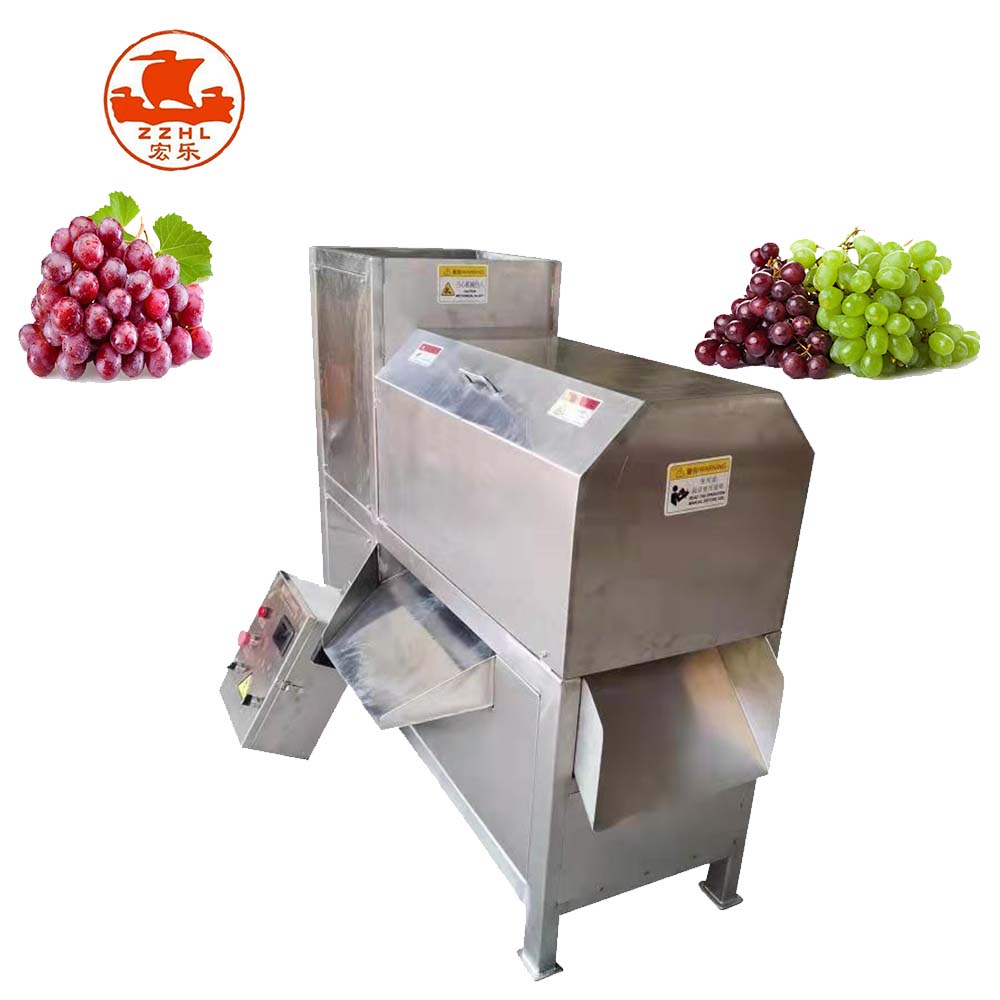

Grape de-stemming machine is suitable for separating the stalks of grapes. It is an ideal pre-processing equipment for grapes in wineries and grape juice processing plants.
Structure characteristics and working principle of grape destemming machine:
The machine is mainly composed of a feeding hopper, a destemming screen tube, a destemming shaft, a receiving trough, a frame, a motor, and a transmission part. When working, the motor drives the destemming shaft. The grapes enter the stem-removing sieve cylinder from the feed hopper, pass through a half-sieve and the stem-removing shaft, and then rotate by the stem-removing shaft. The leaves on the stem-removing shaft separate the fruit particles from the stems and branches, and the stem-removing leaves are in a spiral shape. It is installed on the main shaft and rotates at high speed to discharge the stems from the end of the half screen. The de-stemmed fruit particles fall into the receiving trough from the round hole on the half sieve, and the fruit stems are discharged with a slag-removing port.
| Model | HL-PQG |
| Voltage | 3kw（380v） |
| Machine size | 1300*560*1100mm |
| Weight | 110kg |
| Capacity | 1.5t/h |
