Equipment Description

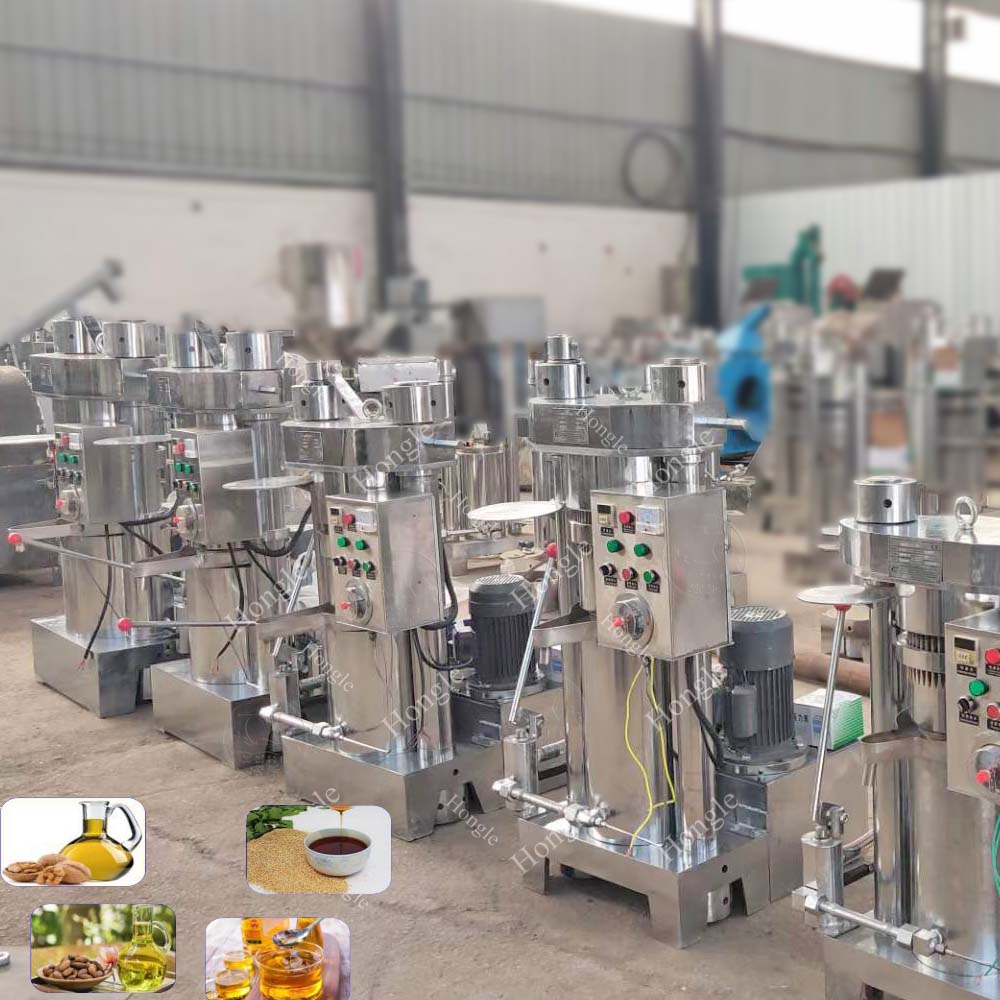

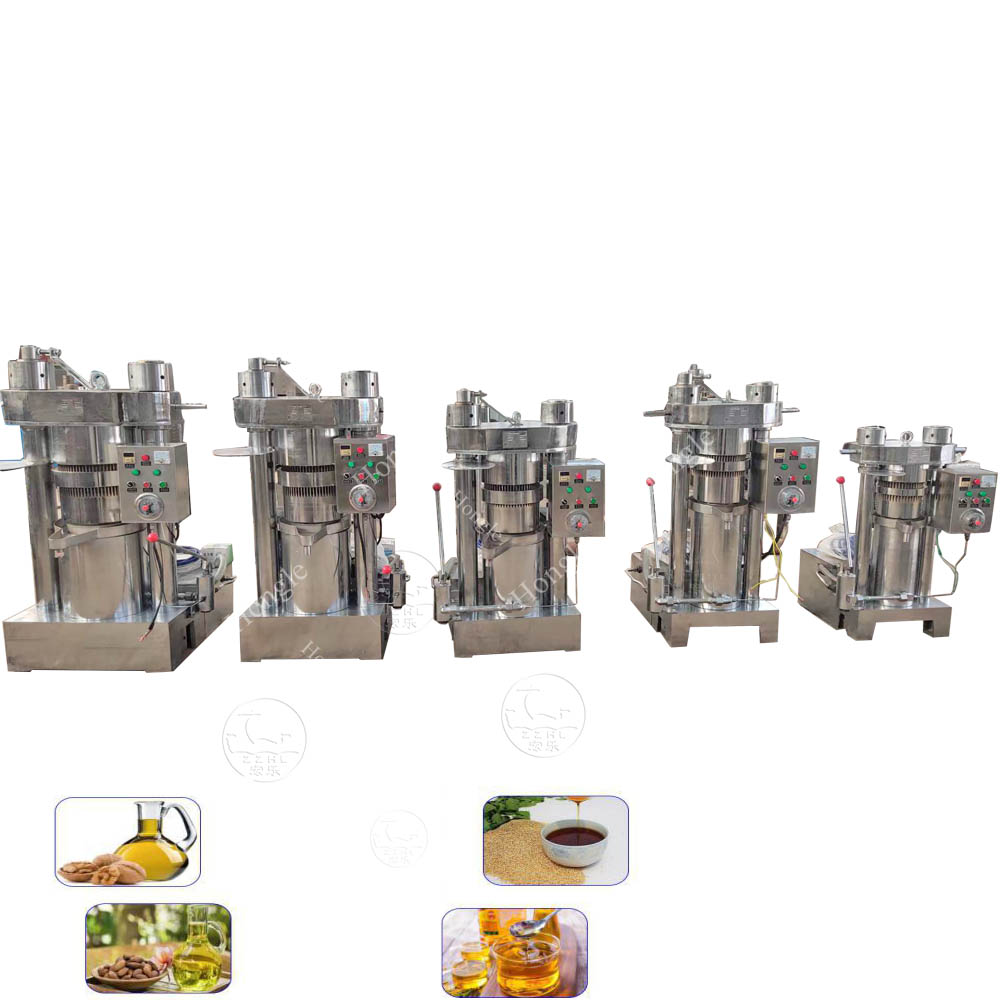

The automatic hydraulic oil press is a small oil press with simple operation, high oil output rate and less replacement of wearing parts. It is an advanced equipment for manual operation of replacing small grinding sesame oil. (2-8 kg / time), short time (8 - l2 minutes / time). The main processing oil crops of this machine are: sesame, walnut kernel, tea seed, pine seed (good peeling effect), almond and other high oil crops.
PARAMETER
| Model item | HL-180 | HL-230 | HL-260 | HL-280 |
| working pressure | 60MPa | 60MPa | 60MPa | 60MPa |
| Piston stroke | 300 | 400 | 430 | 500 |
| Capacity | 3.-4Kg | 7-8kg each time | 9-10Kg | 13-15kg |
| Pressing time | 7-8 minutes | 7-8 minutes | 7-8 minutes | 7-8 minutes |
| Heating temperature | 0-150℃ | 0-150℃ | 0-150℃ | 0-150℃ |
| Voltage | 380v | 380V | 380v | 380v |
| Power | 1kw | 1.5KW | 1.5kw | 2.2kw |
| Machine Weight | 550kg | 880KG | 1000kg | 1400kg |
| Machine Size | 800*700*1100mm | 850*750*1450mm | 900*850*1520mm | 1000*1050*1550mm |
| Packing size | 850*750*1200mm | 900*800*1550mm | 950*900*1620mm | 1000*1100*1650mm |
