Equipment Description

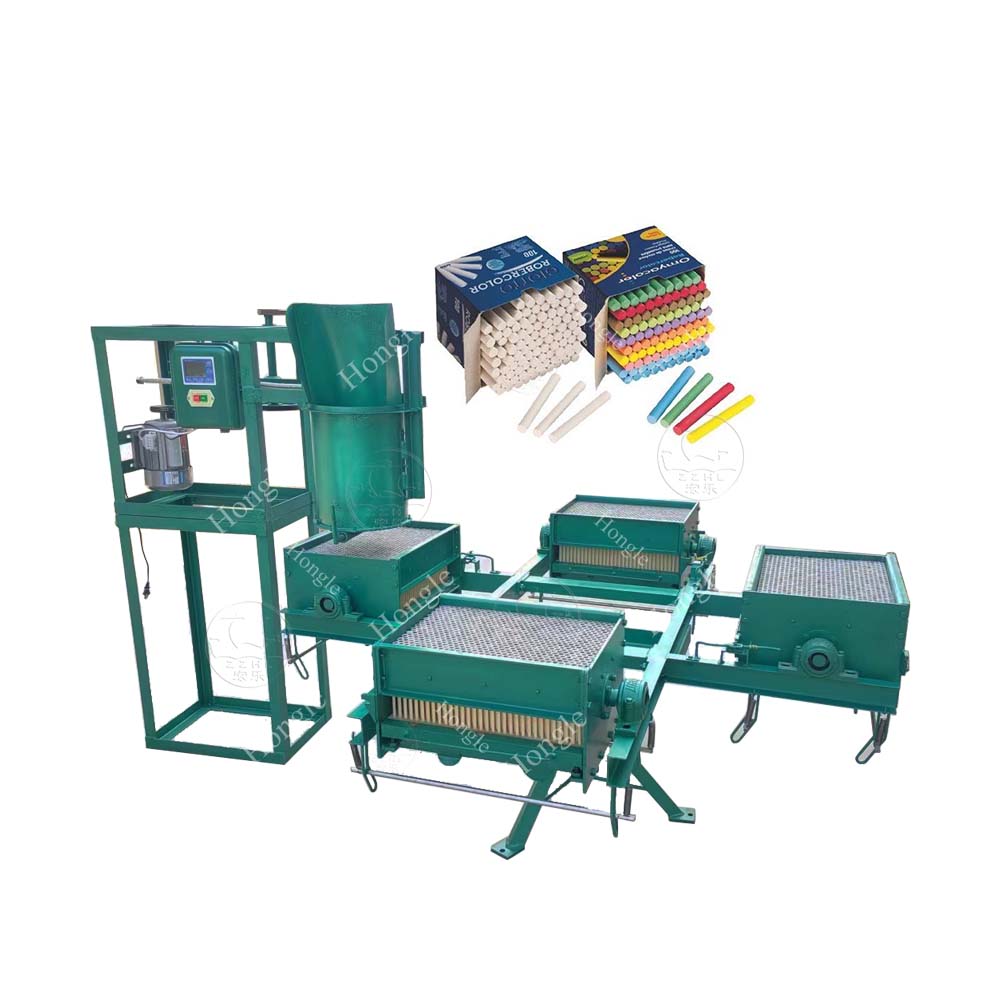

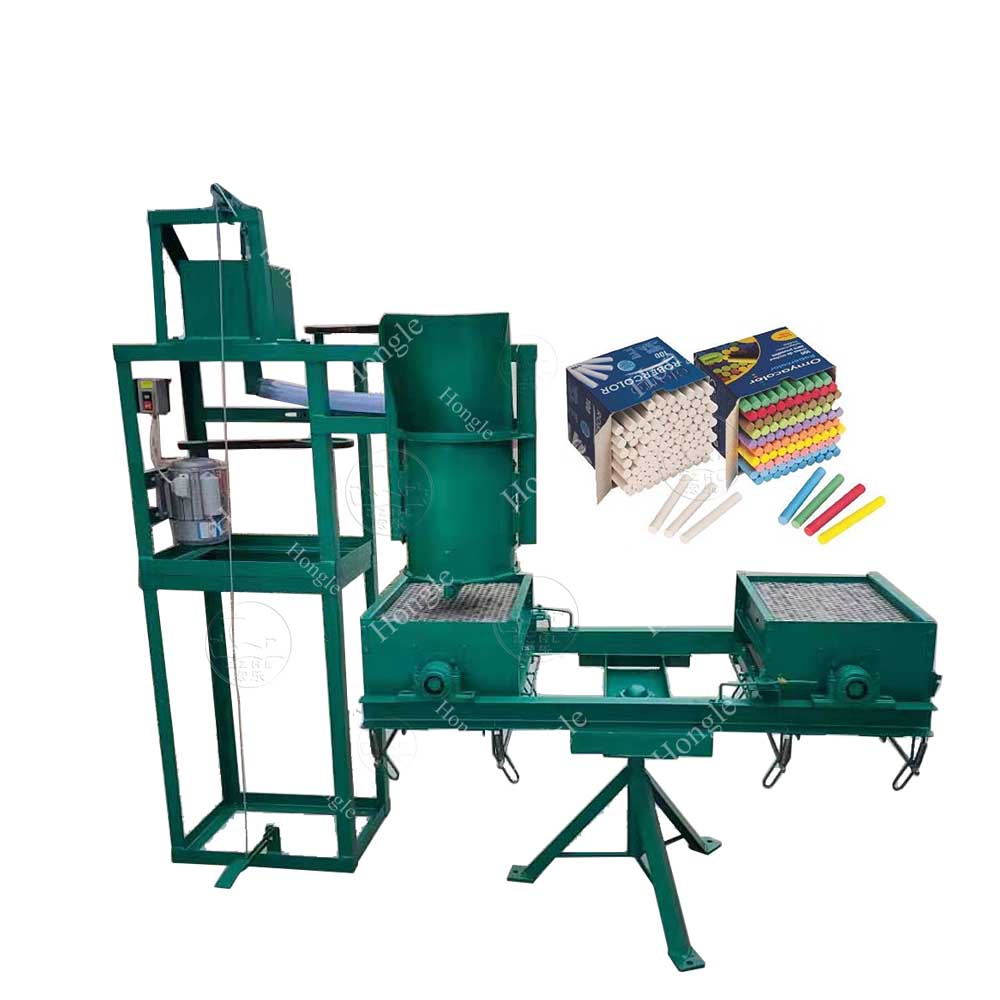

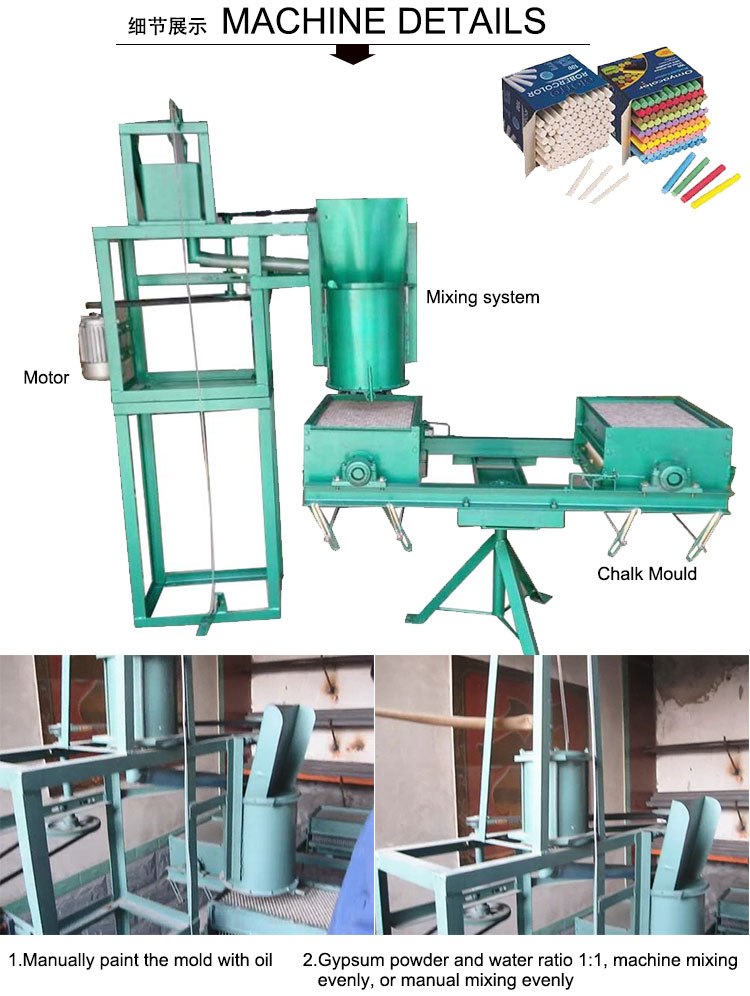

The Chalk Making machine is designed in assembly line method. Such as : Supplying water a utomatically, Electric beating, Grouting .Coming out. It has changed the manual operations into electric clutch with water cycling.
Greatly decreased workers' labor intensity,improved many times of efficiency.
PARAMETER
| Model | Weight (kg) | Volume (m3) | Packing Size (L x W x H-mm) | Capacity (pieces/hour) | Remarks |
| 800-1 | 65 | 0.11 | 660×480×360 | 6,000~8,000 | with 1 moulds |
| 800-2 | 260 | 1.65 | 1800×1150×800 | 8,000~12,000 | with 2 moulds |
| 800-4 | 350 | 1.65 | 1800×1150×800 | 12,000~24,000 | with 4 moulds |
| 800-6 | 500 | 1.65 | 1800×1150×800 | 24,000~32,000 | with 6 moulds |

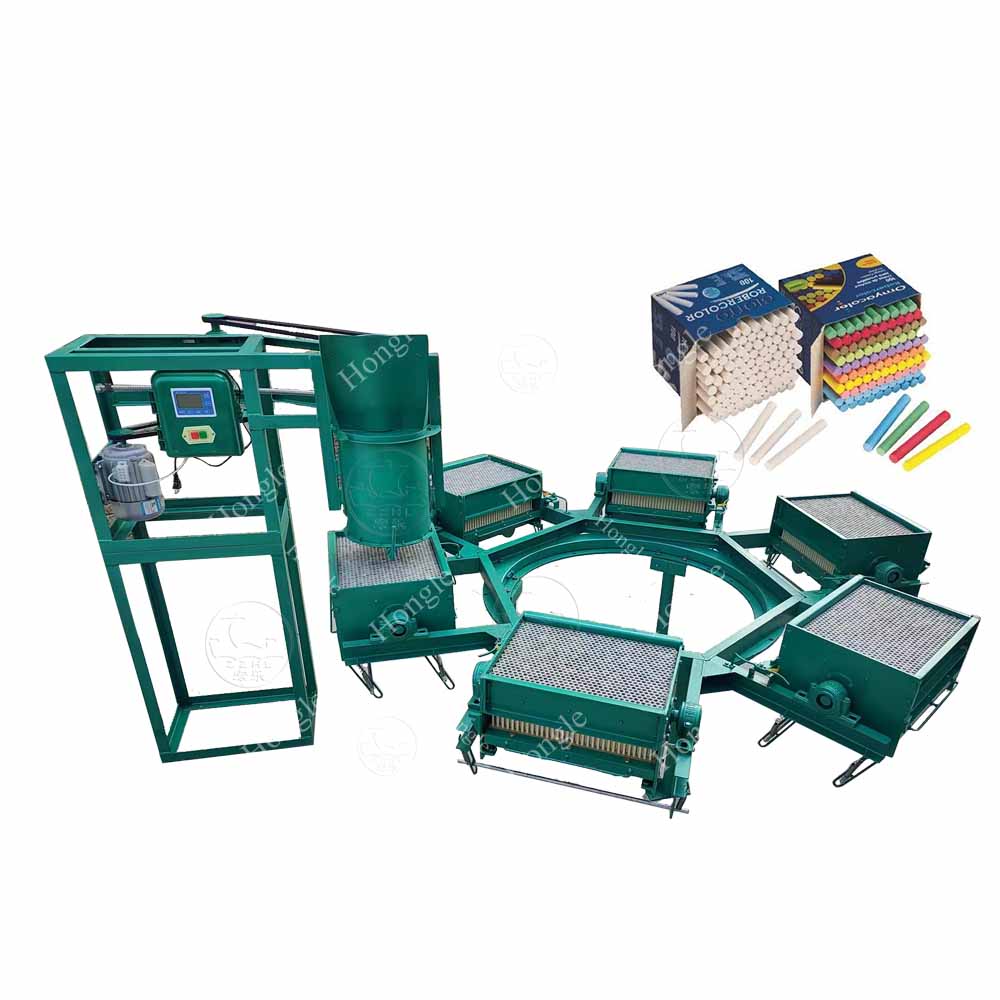

| 800-8 | 700 | 3 | Mould box:1480×1480×560 Mixer box :1800×1150×800 | 32,000~48,000 | with 8 mould |
