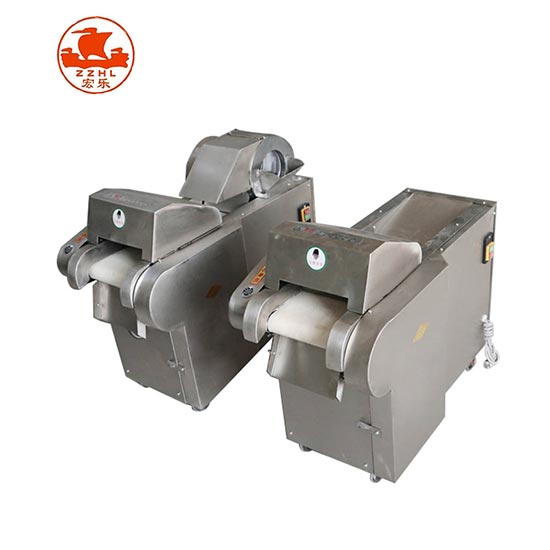

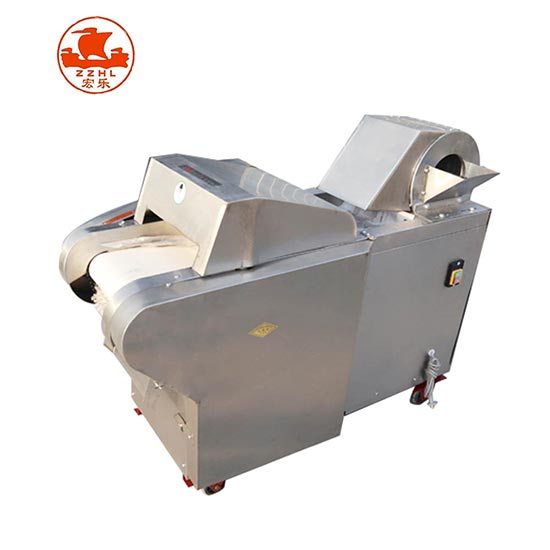

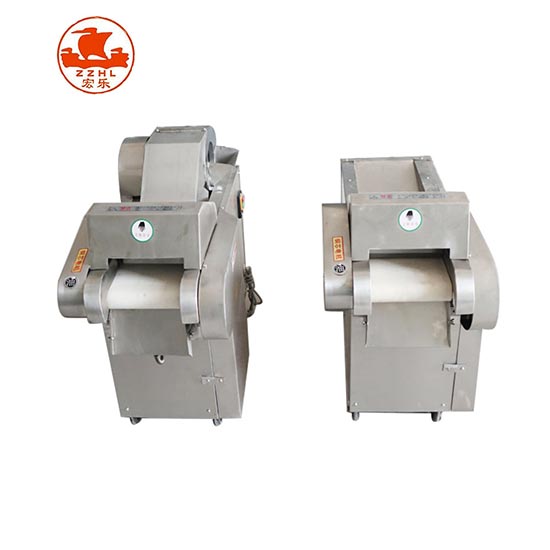

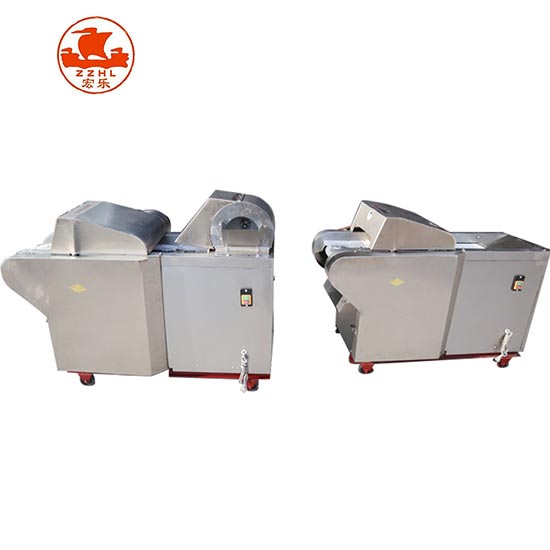

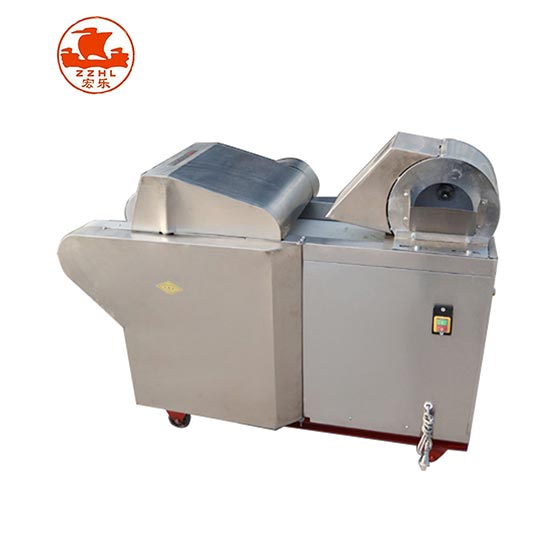

HL-660 Vegetable Slicer Cutting Machine

Introduction

This machine is easy to operate with a high output and good performance. It is adjustable to cut potato into slice and strip. This machine is made of stainless steel and aluminum alloy; it is the most advanced cleaning and cutting equipment in China. multi-function chopping machine is manual cutting simulation principle, using three speed to 1-25mm need to shred. The "centrifugal slicing mechanism" completes all kinds of hard dish slices, which are automatically conveyed to the shreds or cut blocks under the vertical knife. Different cutting tools can be cut to slice, block, silk, Ding, rhombus and curvilinear forms.

The chopping machine characteristics :
Such as a variety of tubers, leaf vegetables, kelp, etc. Also can be cut round such as potatoes, radish and other products.
This kind of machine can process roots, stems, leaves and other vegetables into slices, silk, dicing, diamond, curves, flower buts, flowers and so on. Automatic vegetable cutting machine when the material feeder by pressure to the knife disc, disc knife to cut sheet material, and then by the inclined disc blade below the knife plate to press discs, fixed cutter blades arranged in parallel or square blade to pieces divided into strips or grain, then set aside by the dial plate. The machine has the advantages of small size, high efficiency and complete function. It can process all kinds of specifications, chips, strips, silk, etc. Granular melon and fruit are suitable for the use of pickles processing plants and large canteens, restaurants and other places.

Parameter
Model Capacity Power Weight Dimensions Remark
HLQC660 660kg/h 0.75kw 140kg 902*462*742mm The length of the vegetable shape thickness is adjustable
L:1-30mm
Material:SS
HLQC1000 200-1000kg/h 1.5 380 1302*512*1052
HLQC20 120-350kg/h 0.75 55 717*457*582
HLQC80(Digital type) 80-200kg/h 1.5 155 1202*662*1002
Model Power(kw) Size (L*W*Hmm) Capacity Weight (kg)
300#without cutter head 0.38 480*200*380 70-80kg/h About 30
660#without cutter head 1.5 950*450*650 100-300kg/h About 78
660#with cutter head 1.5 950*450*850 100-300kg/h About 98
1000#without cutter head 1.5 1300*600*850 200-1000kg/h About 160
1000#with cutter head 1.5 1300*600*1100 200-1000kg/h About 180

With cutter head Parameter

Model Cutter head size Straight knife Size Arbor height
660#with cutter head 2-8mm adjustable 2-23mm adjustable 50mm
1000#with cutter head 2-8mm adjustable 2-23mm adjustable 70mm
1000# vegetable cutting machine can be customized ,if you need ,please contact us.
