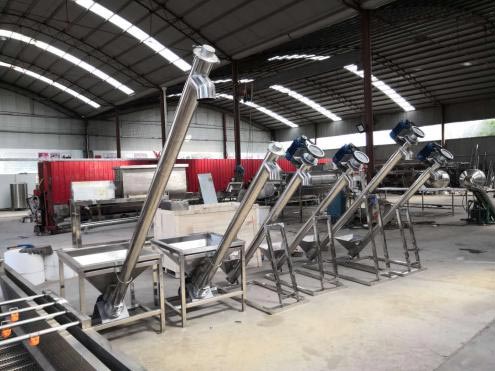

Stainless steel Screw elevator :
Dry powder Mixer is a new type of high-efficiency mixing equipment, widely used in putty paste, real stone paint, dry powder, putty, medicine, food, chemicals, feed, ceramics, refractories, such as powder, that is, powder and glue slurry mixing, chemical, compound fertilizer, dyes, pigments, rubber, building materials, refractories, rare earths, plastic glass and new materials,Nuclear energy materials and other industries of solid-solid (that is, powder and powder), solid-slurry (that is, powder in the glue slurry) of the material mixing.
Dry powder Mixer is a mixer can work alone, with conveyors, storage tanks, electronic metering automatic packaging machine (suitable for valve pockets, saving 3-4 workers, significantly improve efficiency) can be achieved feeding-stirring-packaging one-stop, is the traditional process of replacement products.
Performance Features :
1. The horizontal screw mixer is not affected by the size and density of the particles under the feasibility factor.It also has a good mixing effect on viscous materials.
2. The smooth mixing process reduces the damage to fragile materials, and the addition of flying knife structure also plays a crushing role.
3. Horizontal structure lower body height, easy to install.
4. The positive and negative rotating screws are mounted on the same horizontal axis to form a low-power and efficient mixing environment.
Working principle :

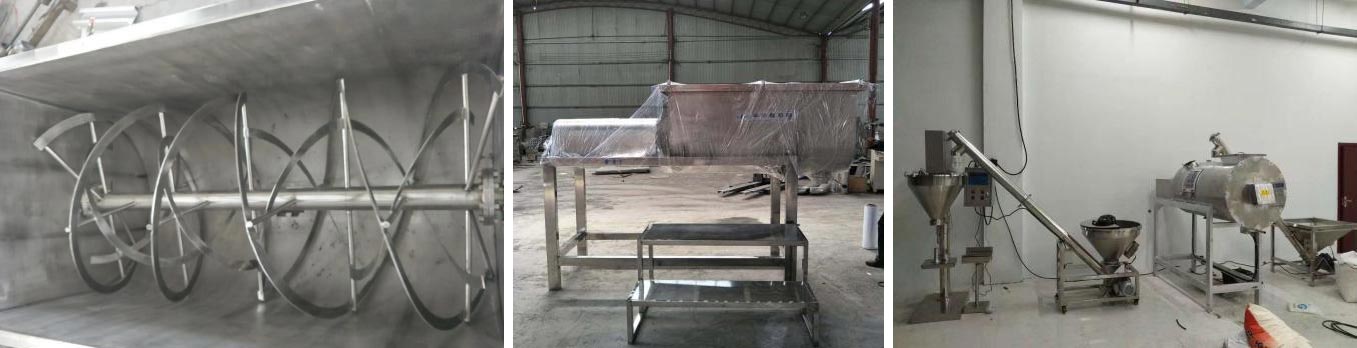

The horizontal screw mixer is driven by the inner and outer diameter helix mounted on the mixing shaft to drive the barrel body material, so that the mixer flips the material in the maximum range of the barrel body. Mixer structure, spiral design into internal and external, left and right mutual for the reverse spiral, agitator work inside the spiral drive near the axis of the material for axial rotation, axial from the inside to the sides of the push, external spiral drive close to the barrel wall material for axial rotation, axial from both sides to the inside of the push, resulting,complete the material mix quickly and evenly over a short period of time.

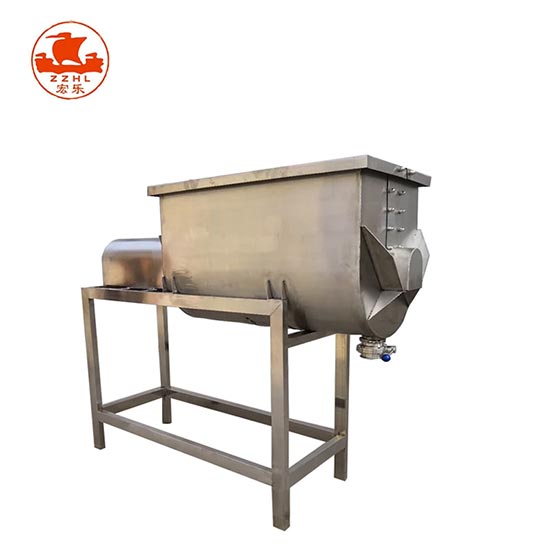

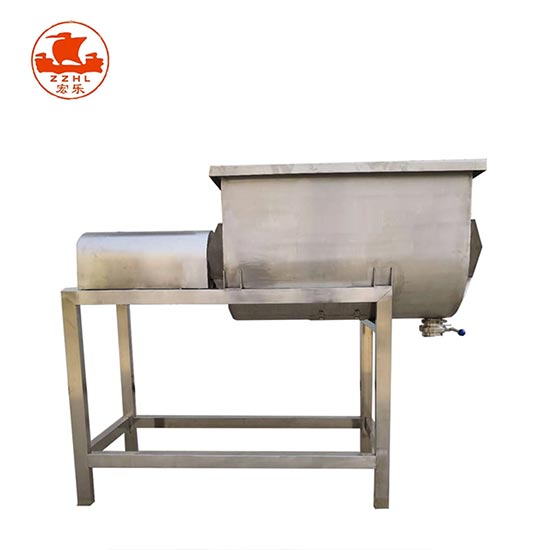

Horizontal screw/ spiral ribbon mixer /powder mixer/seasoning mixer
| Model | Machine size（mm） | Weight（kg） | Voltage （kw/v） | Capacity |
| HLHDF-440(Round type) | 2250*720*1700 | 260 | 2.2/380 | 350L/batch |
| HLHDF-550(U type) | 2250*800*1700 | 380 | 3/380 | 450L/batch |
| HLHDF-870(Round type) | 2600*920*1980 | 560 | 5.5/380 | 750L/batch |
| HLHDF-1160(U type) | 2600*1020*2050 | 700 | 7.5/380 | 1000L/batch |
| HLHDF-1650(Round type) | 2800*1160*2200 | 800 | 11/380 | 1500L |
| HLHDF-2100(U type) | 2800*1280*2300 | 850 | 15/380 | 2000L |
-
This Fish killing machine is a collection to scale, open fish maw, gutted and fish cleaning function, can be processed silver carp, bream, grass carp, black carp, carp, salmon, mandarin fish, tilapia, perch, fish Palestinian wave all kinds of fish.
Fish Scale And Gutting Machine
-
This machine is made of all stainless steel materials, wear-resistant and durable, meets the standard, is simple to make, easy to clean, safe and reliable, accurate operation of opening and opening, cleans the internal organs, does not break the fish gallbladder, automatically sprays water at the same time, rinses the fish belly.
Fish Fillet Machine
-
This machine is specially used to remove the skin of various types of fish ,so that the fish can be processed into products soonly. We specially made the pressing roller to fix the material peeling. The peeling rate is high and the material is not wasted. The peeling thickness can be adjusted. It is a good helper for removing fish skin.
Fish Skinning Machine
-
Meat mincer is an indispensable equipment in food processing. Meat mincer adopts the principle of rotating screw to push the materials in the feed box to the pre-cut hole plate, then, the material is cut up by the shearing action of the Rotary Cutter Blade and the hole edge on the hole plate cutter, and the material...
Meat Grinder Grinding Machine
